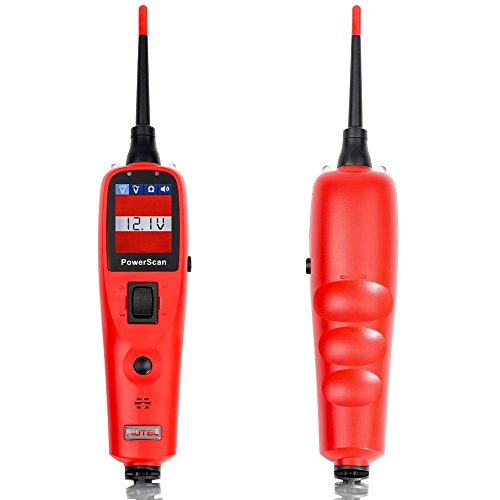

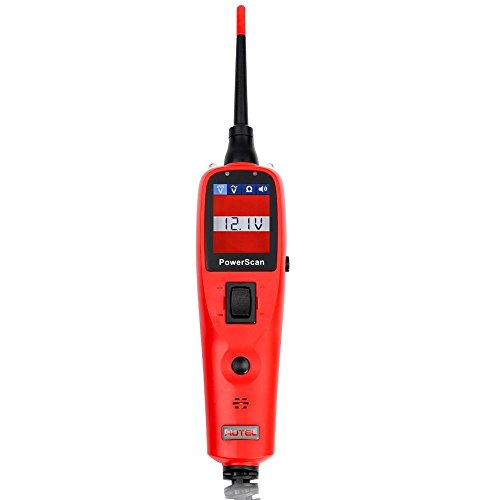

Autel Powerscan PS100 Electrical System Diagnostic Tool Electronic Circuit and Component Tester (RED)
Description
- The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step
- PS100 circuit tester contain 20ft (extendable) cable provides excellent accessibility to test along the vehicle
- Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
- Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
- Built-in Flashlight enables you to work in the dark

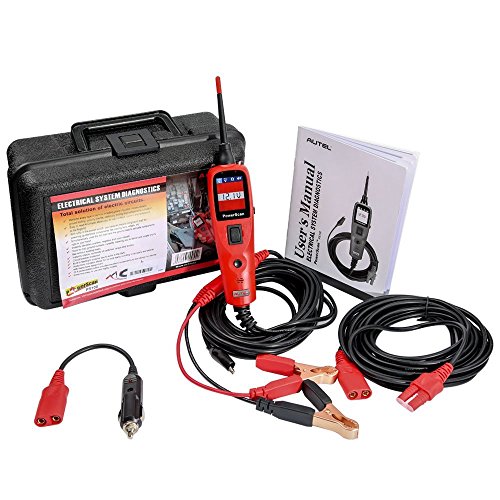

Autel Powerscan PS100 Feature: Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc. Simultaneously uses the hot lead and the ground lead to activate components right in your hand Instantly identifies positive, negative and open circuits Instantly checks continuity of switches, relays and diodes Circuit breaker protected Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment Extremely easy to use and highly reliable Powerscan PS100 Specification: Display: TFT color display (160 x 128 dpi) Operating Temperature: 0 to 60°C (32 to 140°F) External Power: 12.0 or 24.0 V power provided via vehicle battery Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38") NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb) Package list: 1 × PowerScan PS100 1 × Rugged blow molded case 1 × 20ft. extension cable 1 × Probe tip 1 × Battery hookup clips 1 × Cigarette lighter adapter 1 × User's Manual
